• Dark gray front fascia
• Dark gray rear bumper
• Bright grille
• Chrome headlamp bezels w/chrome trim
• Halogen headlamps
• Light tint windshield & front door windows
• Deep tint sunscreen glass
• Variable intermittent windshield wipers
• Dual position tailgate

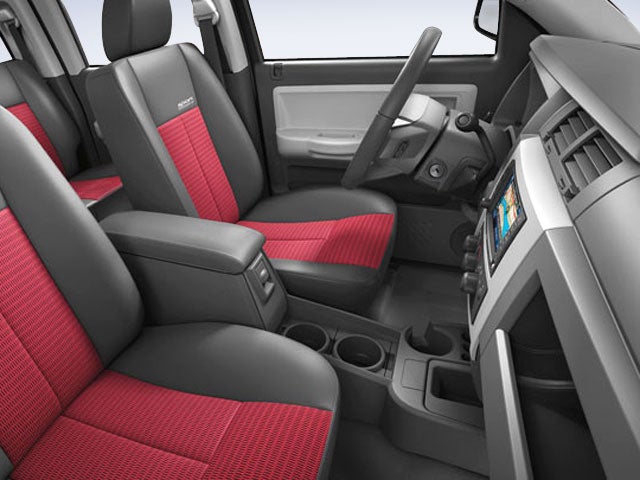

• Cloth front bucket seats
• 60/40 split folding rear bench seat
• Front floor carpeting
• Instrument cluster w/tachometer, 120 MPH speedometer, black bezel
• Warnings-inc: key in ignition, seat belt, headlamps on, door ajar, tire pressure monitor
• Air conditioning
• AM/FM stereo w/CD/MP3 player, (4) speakers
• 12V pwr outlet in instrument panel
• Vinyl door trim panels w/map pocket
• Sun visors w/RH mirror
• Driver/passenger assist handles
• Lighting-inc: map/reading, front dome, rear dome lamps

• Rear anti-lock brakes
• Driver & front passenger airbags
• Rear child safety door locks
• Dual note horn

3.7L V6 "MAGNUM" ENGINE

• (STD)

• DGV
• DSA
• EKG

• Mileage
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 136
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3100
• Gross Axle Wt Rating - Rear (lbs): 3600
• Curb Weight - Front (lbs): 2443
• Curb Weight - Front (lbs): 2346
• Curb Weight - Rear (lbs): 1999
• Curb Weight - Rear (lbs): 1919
• Gross Vehicle Weight Rating Cap (lbs): 6010
• Gross Combined Wt Rating (lbs): 9000
• Gross Combined Wt Rating (lbs): 9300
• Gross Combined Wt Rating (lbs): 10500
• Gross Combined Wt Rating (lbs): 11700
• Gross Combined Wt Rating (lbs): 7700
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4450
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4750
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3150
• Dead Weight Hitch - Max Tongue Wt. (lbs): 445
• Dead Weight Hitch - Max Tongue Wt. (lbs): 475
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 315
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4450
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4750
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 3150
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 445
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 475
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 315
• Suspension
• Suspension Type - Front: Independent Coil
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 3100
• Spring Capacity - Rear (lbs): 3850
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating Hypoid
• Axle Capacity - Front (lbs): 3100
• Axle Capacity - Rear (lbs): 3850
• Axle Ratio (:1) - Rear: 3.55
• Axle Ratio (:1) - Rear: 3.92
• Axle Ratio (:1) - Rear: 3.21
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: Four Wheel
• Brake ABS System: Rear Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.3 x 1.1
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.6 x 2.25
• Tires
• Front Tire Order Code: TVF
• Rear Tire Order Code: TVF
• Spare Tire Order Code: TBB
• Front Tire Size: P245/70R16
• Rear Tire Size: P245/70R16
• Spare Tire Size: - TBD -
• Front Tire Capacity (lbs): 1903
• Rear Tire Capacity (lbs): 1903
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: 713
• Revolutions/Mile @ 45 mph - Rear: 713
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 7.0
• Rear Wheel Size (in): 16 x 7.0
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 17.4
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 44.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 22.0
• Fuel Tank Location: Inboard LH
• Exterior Dimensions
• Wheelbase (in): 131.3
• Length, Overall w/o rear bumper (in): 218.8
• Width, Max w/o mirrors (in): 71.7
• Height, Overall (in): 68.7
• Overhang, Front (in): 38.7
• Overhang, Rear w/o bumper (in): 48.8
• Front Bumper to Back of Cab (in): 144.3
• Cab to Axle (in): 25.4
• Cab to End of Frame (in): 74.2
• Ground to Top of Load Floor (in): 31.2
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 37.7
• Ground Clearance, Front (in): 7.4
• Ground Clearance, Rear (in): 7.4
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 64.9
• Cargo Box Width @ Top, Rear (in): 59.6
• Cargo Box Width @ Floor (in): 59.6
• Cargo Box Width @ Wheelhousings (in): 45.2
• Cargo Box (Area) Height (in): 17.6
• Tailgate Width (in): 53.3
• Cargo Volume (ft³): 37.1
• Ext'd Cab Cargo Volume (ft³): 37.1
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 39.9
• Front Leg Room (in): 41.9
• Front Shoulder Room (in): 57.7
• Front Hip Room (in): 54.9
• Second Head Room (in): 38.4
• Second Leg Room (in): 36.4
• Second Shoulder Room (in): 57.5
• Second Hip Room (in): 56.0
• Summary

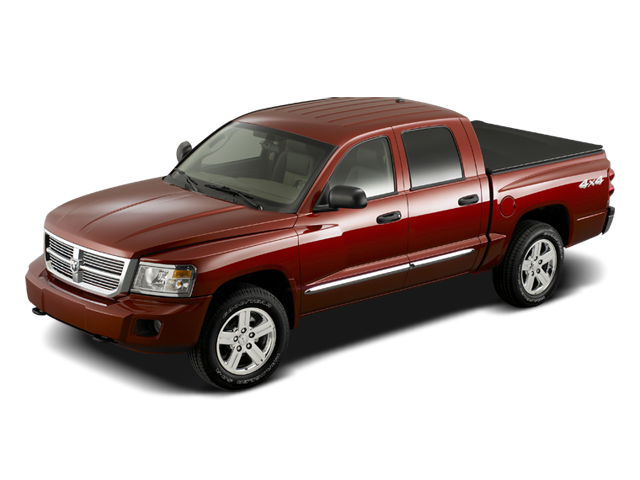

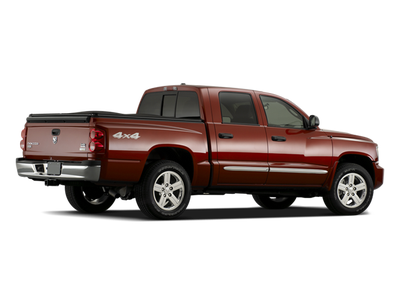

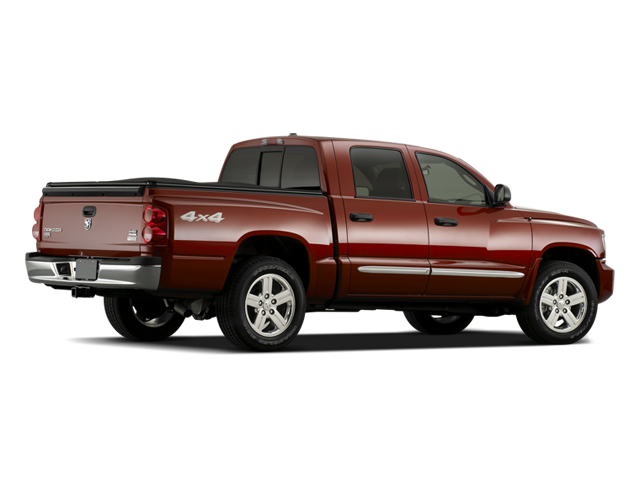

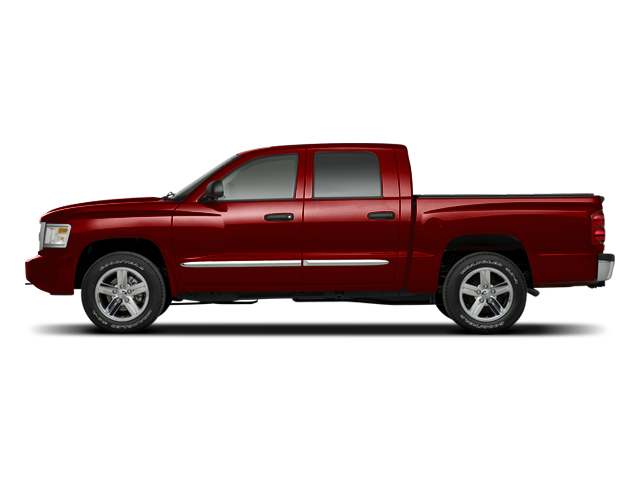

• Vehicle Name: Dodge Dakota
• Body Style: Crew Cab 5'5" Bed
• Body Code: 131.3" WB
